Beat boiler atmos - GS wood carburetor 15 kW

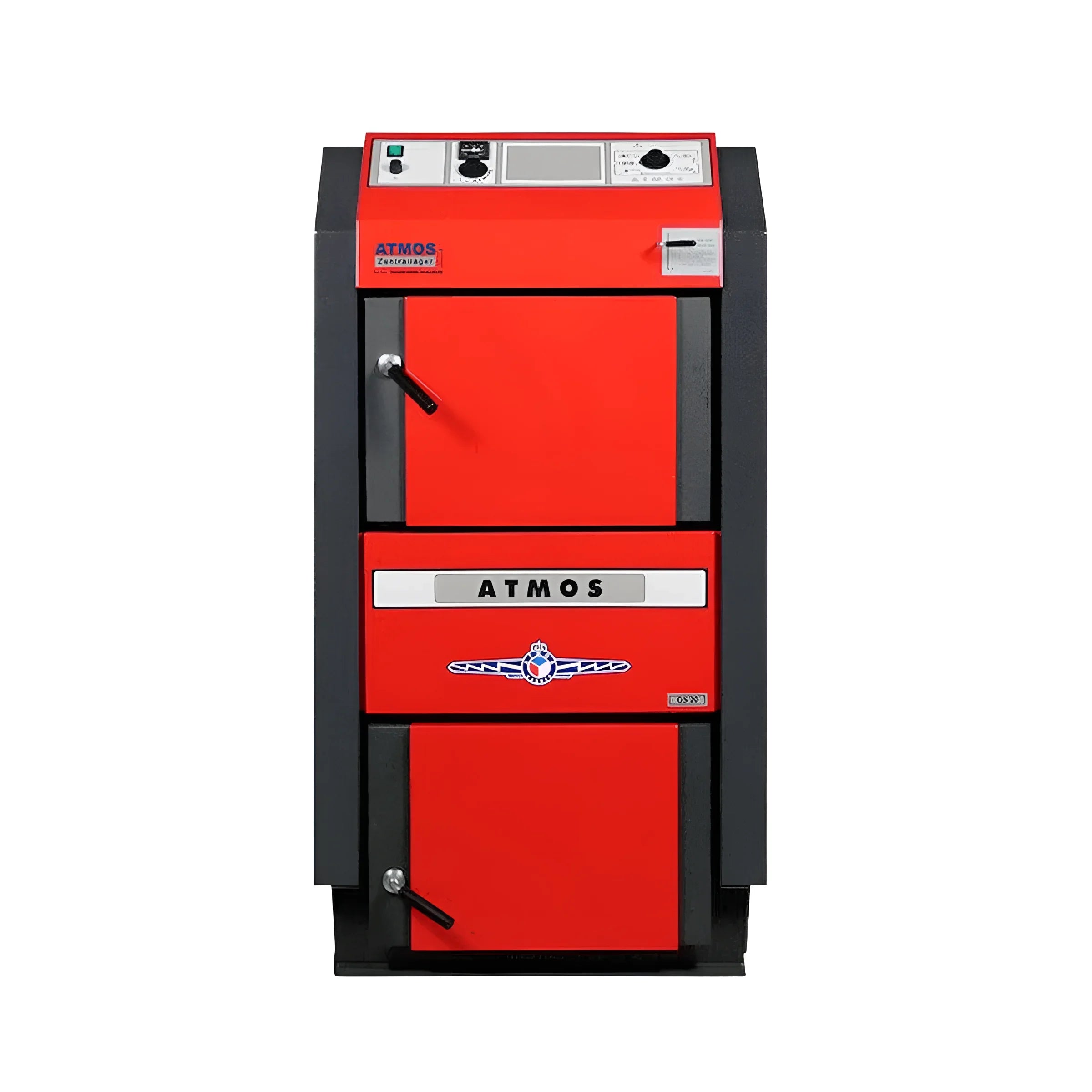

Wood boiler Atmos - GS15

Wood boiler Atmos -GS wood gasifier solid fuel achieve an efficiency of max. 87.1%.

It is spatially structured like the ATMOS GSE seriesHowever, Atmos dispenses with an additional exhaust heat exchanger in the GS series and uses a different structure for the ceramic molded parts in the filling and combustion chambers. As a result, it achieves a slightly lower efficiency than the GSE series.

Advantages: Wood boiler Atmos - GS wood gasifier solid fuel

• Wood gasifier made of high-quality 6 mm and 8 mm boiler steel
• Generous filling space
• Door hinge on the left, but can be replaced later
• Robust, replaceable protective lining in the filling and combustion chamber made of proven fireclay ceramic (up to 4 cm thick)
• Integrated safety heat exchanger 1/2 for thermal discharge protection
• Parallel and V-shaped filling chamber geometry for optimal combustion behavior and avoidance of hollow burning
• All-round thermal insulation made of mineral wool
• Automatic switch-off after the wood has burned down
• Boiler control panel prepared for the use of a weather-compensated control system, for several heating circuits, also for solar circuit.
• EN303-5 CE-0036

Technical data

• Energy efficiency class A+

• Boiler class 5

• Nominal heat output 15 kW

• Efficiency 91.2%

• Tensile requirement 16 Pa

• Prescribed fuel: logs

• Maximum firewood length 250 mm

• Exhaust gas temperature 134 °C

• Exhaust gas mass flow 0.01 kg/s

• Height 1280 mm

• Width 678 mm

• Depth 670 mm

• Flue pipe connection 150/152 mm

• Weight 302.0 kg

Scope of delivery

• Wood gasifier Atmos GS 15 kW
• Assembly and operating instructions

Download

• Operating instructions
• Wood gasifier brochure
• Spare parts catalog
