Pellet boiler attack automatic plus with low electrical power consumption

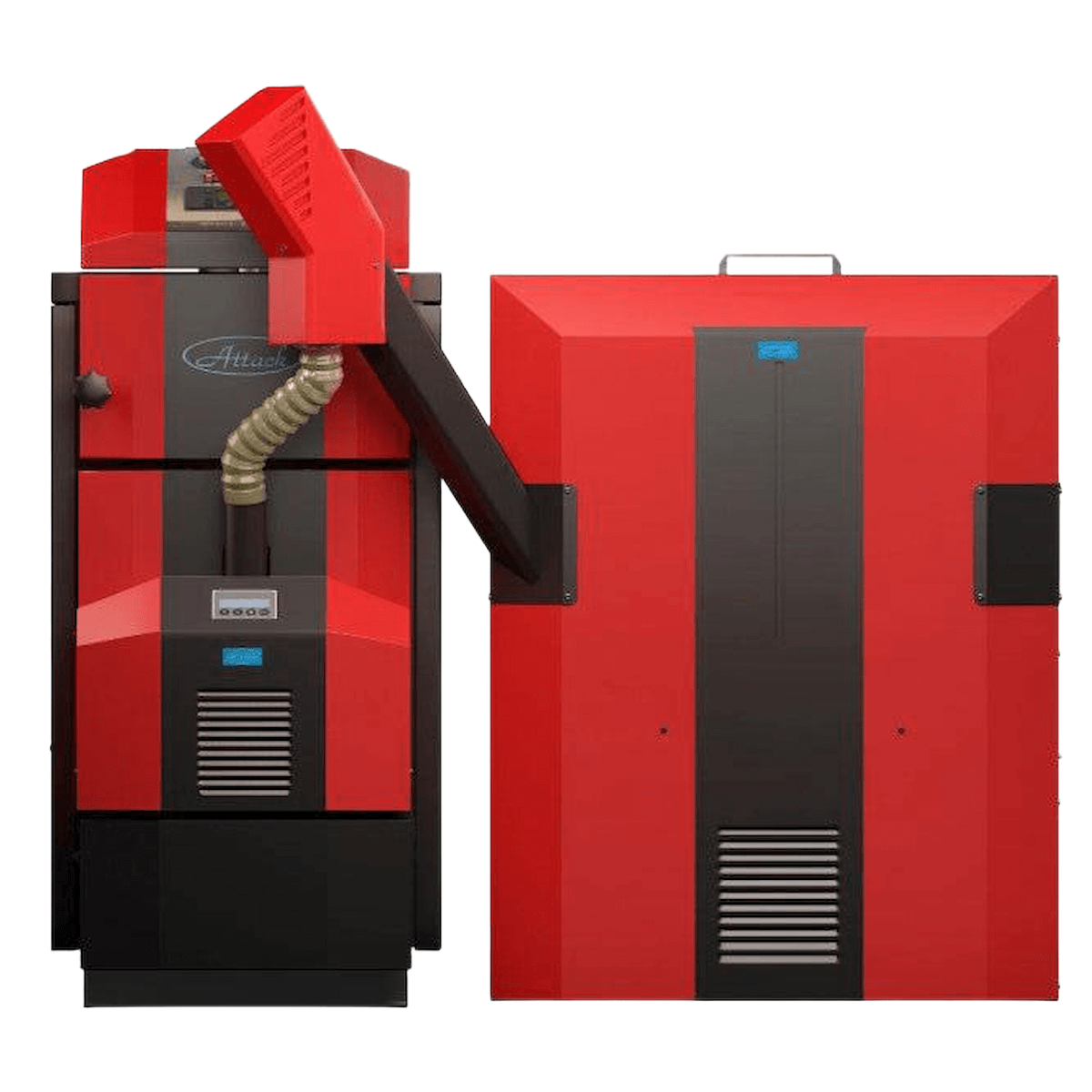

Pellet boiler Attack Pellet 30 Automatic Plus – Efficient heating system for modern demands

High-quality workmanship and robust construction

The Attack Pellet 30 Automatic Plus pellet boiler impresses with its first-class choice of materials and precise workmanship. Constructed from 6 mm thick boiler steel, it offers outstanding stability and durability, meeting the demands of modern heating solutions.

The robust construction not only guarantees reliable performance but also safe use in daily operation.

Automatic operation and innovative functions

With fully automatic operation and a 4.5-inch SMART touchscreen display, this boiler ensures intuitive and user-friendly operation. Features such as automatic operation, error diagnostics, and mixing circuit control enable efficient operation without manual intervention.

The integration of innovative technologies, such as automatic fuel supply and auto-diagnostics, makes everyday life easier and sustainably optimizes the heating process.

Efficient heating performance and environmentally friendly combustion

With a power range of 8 to 30 kW and an efficiency of over 90%, the pellet boiler offers a powerful yet environmentally friendly solution. The high-quality pellets are burned efficiently and with low emissions, resulting in minimal ash formation.

The use of renewable energy and the high calorific value of pellets make this boiler an environmentally friendly alternative to conventional heating systems.

Easy operation and maintenance-friendly operation

The pellet burner's automatic ash removal and regular self-cleaning system ensure low-maintenance and reliable operation. The resulting ash is collected in an easily emptied transport container, significantly reducing cleaning effort.

This ease of use and maintenance is further supported by functions such as automatic disinfection of the hot water and heating control, thus offering convenient handling.

Optimization of boiler performance and flexibility in use

The Attack Pellet 30 Automatic Plus pellet boiler is ideal for use in combination with buffer storage tanks. With a 500-liter pellet storage tank, the power output is optimally adjusted, while external storage alternatives can also be flexibly integrated.

The versatile setting options, such as nighttime power limitation and the control of a backup boiler, enable tailor-made adaptation to individual heating needs and increase overall comfort during operation.

Technical data:

• Rated power: 30 kW
• Power range: 8 - 30 kW
• Boiler efficiency: 90.6%
• Heat exchanger area: 1.9 m²
• Prescribed chimney draft: 15 - 20 Pa
• Max. operating pressure of the boiler: 250 kPa
• Exhaust nozzle diameter: 150 mm
• Coverage ratio: 40 IP
• Electrical power consumption: 90 W
• Max.Electrical power consumption (when ignited): 600 W
• Boiler class according to CO emission (EN 303-5): 5
• Exhaust gas temperature at rated power: 143 °C
• Fuel: wood pellets Ø 6-10 mm, I 35 mm
• Average fuel consumption: 2.4 - 6.9 kg/h
• Water volume in the boiler: 62 l
• Heating water temperature setting range: 60 - 90 °C
• Supply voltage: 230 V, 50 Hz
• Dimensions: H1220xW575xD1250 mm
• Boiler weight: 355 kg
